How to Install an Engine Head Gasket Kit Full Set Step-by-Step

How to Install an Engine Head Gasket Kit Full Set Step-by-Step — For ISUZU 6BG1

Why choose an Engine Head Gasket Kit Full Set for an ISUZU 6BG1

The WTA Engine Head Gasket Kit 1878106090 for ISUZU 6BG1 (1986–1992) F-Series FSR 500 FVR 12 JCS 420 is a complete engine overhaul gasket set designed to restore sealing integrity across the entire top-end assembly. When performing a head gasket replacement it is highly recommended to use a full set (Engine Head Gasket Kit Full Set) rather than replacing only the head gasket. The full kit ensures all mating surfaces (head, intake, exhaust, valve cover, oil and coolant passages) have new seals, reducing the risk of secondary leaks and re-work. This article provides an experienced, step-by-step installation process, safety tips, and troubleshooting advice to achieve a reliable rebuild.

Preparation: tools, workspace, and parts checklist (Engine Head Gasket Kit Full Set)

Good preparation halves the job time and prevents mistakes. Before starting, verify you have the correct product: For ISUZU 6BG1 Truck Fit 1986-1992 F-Series FSR 500 FVR 12 JCS 420 1-87810609-0 Engine Head Gasket Kit Full Set 1878106090. Prepare a clean, well-lit workspace with a sturdy engine stand (or vehicle raised securely on jack stands) and collect these tools and items:

• Full socket set (including deep sockets), torque wrench (0–200 Nm), breaker bar
• Feeler gauges, straight edge, soft mallet, sealant/RTV (as specified by kit or manual)
• Brake cleaner or parts cleaner, lint-free rags, plastic scraper or gasket remover
• New head bolts (if kit includes or manual requires), coolant, engine oil and filter
• Service manual for ISUZU 6BG1 (for exact torque specs, bolt stretch data, and tightening sequence)

Make sure to place fasteners and parts in labeled trays and photograph wiring and hose routing during disassembly to aid reassembly. Natural keyword: Engine Head Gasket Kit Full Set should appear on packing and receipts for warranty verification.

Step 1 — Drain fluids and disconnect systems

Start by draining coolant and engine oil. Disconnect the battery and remove air intake components, intercooler piping (if applicable), and any engine covers blocking access to the cylinder head. Label and bag all electrical connectors and vacuum lines. Removing the turbocharger may be necessary for full access on some F-Series variants. This step reduces contamination and makes the head removal safer and cleaner.

Step 2 — Remove ancillary components and valve train

Remove intake manifold, exhaust manifold, rocker cover/valve cover, fuel lines (depressurize safely), injector lines, and timing belt/gear covers as required. On the ISUZU 6BG1, it's critical to mark timing position and follow the service manual to avoid timing misalignment. Remove rocker arms or camshafts as needed to gain access to head bolts. Keep parts in order; a simple parts map helps later.

Step 3 — Cylinder head removal

Before loosening head bolts, loosen them in the reverse sequence of the tightening order (gradually and in several passes) to avoid warping the head. Use the breaker bar for stubborn bolts. Once free, remove the cylinder head carefully: it is heavy and should be lifted straight up with two people or a hoist. Place the head on a clean workbench on soft padding. Keep the Engine Head Gasket Kit Full Set components nearby so you can immediately compare surfaces and seals.

Step 4 — Inspect head and block surfaces (importance of full set)

Thorough inspection is the most important quality-control step. Clean both mating surfaces with non-abrasive methods (plastic scraper, solvent) and inspect for:

• Warp or unevenness — check with a straight edge and feeler gauge (typical service limit often ~0.05–0.10 mm depending on manual)
• Cracks around combustion chambers, coolant passages, and exhaust ports
• Corrosion or pitting that compromises sealing

If warpage or cracks are present, have the head machined or replaced. Replacing only the head gasket without addressing head or block defects leads to re-failures; this is why a full-gasket approach (Engine Head Gasket Kit Full Set) is recommended for durable repairs.

Step 5 — Prepare surfaces and use the kit: gasket-by-gasket

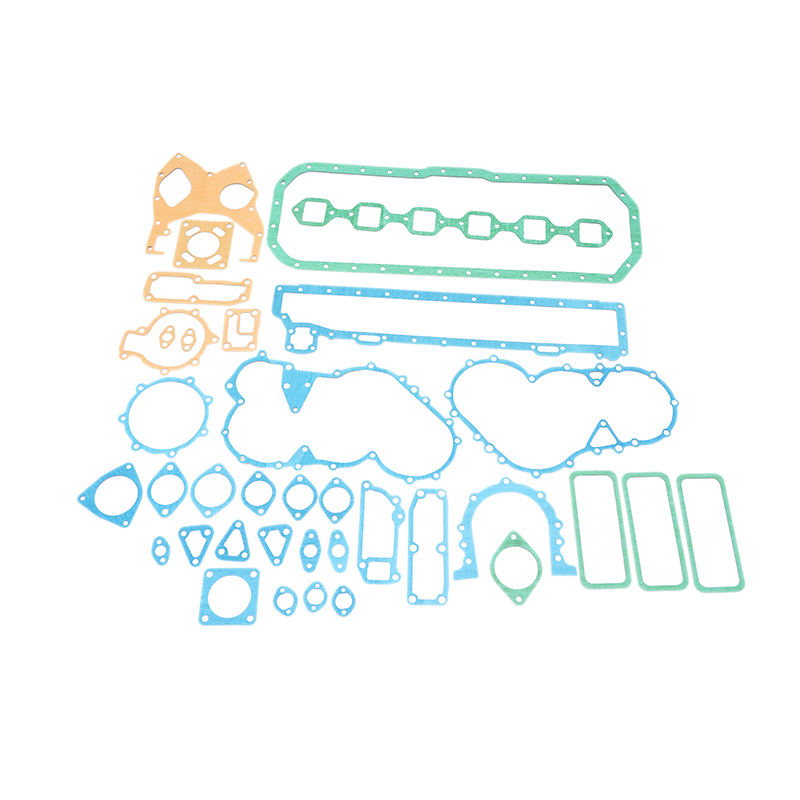

Open the WTA Engine Head Gasket Kit 1878106090 and lay out components. Compare them to removed gaskets and seals. Typical full-set contents (table below) help explain why each part matters.

Clean the block and head faces with solvent and lint-free cloths. Do not use wire brushes or abrasive disks on sealing faces. Install the new head gasket in the correct orientation — most gaskets have markings for TOP or ENGINE SIDE; align all coolant and oil holes. Incorrect orientation is a common cause of immediate failure.

Step 6 — Head bolt strategy: replace, clean, and torque (critical for Engine Head Gasket Kit Full Set)

Many diesel engines (including older ISUZU designs) specify new head bolts or have a torque-to-yield requirement. Check the ISUZU service manual. If the kit includes replacement head bolts, use them. If reusing bolts, clean threads and apply the specified lubricant to the bolt shank and threads where recommended. Follow a step-torque procedure in multiple stages and use the correct tightening sequence. An example tightening sequence must be verified against the factory manual; always prioritize the service manual for exact numbers and angles.

Recommended approach (procedural — verify exact values in service manual)

1) Finger-tighten all bolts in sequence. 2) Torque in stages (e.g., 30% -> 60% -> 100% of final torque) following the manufacturer’s pattern from center outwards. 3) If specified, apply final angle turns (e.g., an additional 90°). Note: The values above are procedural examples. Use the ISUZU 6BG1 factory service manual for the exact final torque and angle values.

Step 7 — Reassembly: timing, manifolds, and fluids

Reinstall camshafts, rocker gear, and set valve lash if applicable. Restore timing belt/gears per the original timing marks and the service manual. Reinstall intake and exhaust manifolds using new gaskets from the kit. Reconnect fuel lines, sensors, wiring harnesses, and vacuum hoses in the order you removed them. Fill with fresh oil and coolant (use the coolant type recommended by ISUZU). Replace the oil filter, clean or replace air filter, and top up fluids.

Step 8 — Initial start, running-in and leak check (Engine Head Gasket Kit Full Set)

Before starting the engine, prime the fuel system if diesel injectors were loosened. Reconnect the battery. Start the engine and let it idle while checking for abnormal noises, smoke, or leaks. Bring the engine up to normal operating temperature and inspect for coolant and oil leaks. After a short test drive under light load, recheck torque on accessible fasteners as some engines require retorquing after thermal cycling; follow the WTA product guidance and ISUZU manual.

Troubleshooting: common issues and how the full set prevents them

Common post-rebuild issues include oil or coolant seepage, overheating, and misfires. Using a full gasket set reduces many causes: intake or exhaust leaks, valve cover leaks, and oil gallery seals. If you detect persistent white smoke (coolant burning) or milky oil (coolant in oil), stop and perform compression and leak-down tests. Consult the service manual and consider pressure testing the cooling system and a professional inspection for head cracks.

Quality assurance: inspections and tests after install

Perform these checks before returning the truck to regular service:

• Leak-down / compression test across all cylinders
• Cooling system pressure test (to detect hidden sealing issues)
• Oil analysis after 100–200 miles to detect coolant contamination

Document all torque values, part numbers (especially head bolts and the full gasket kit number 1878106090), and photos for warranty or resale value. Proper documentation demonstrates adherence to OEM specifications and enhances E-E-A-T credibility for the repair.

Why WTA Engine Head Gasket Kit 1878106090 is a preferred full set

WTA’s For ISUZU 6BG1 Truck Fit 1986-1992 F-Series FSR 500 FVR 12 JCS 420 1-87810609-0 Engine Head Gasket Kit Full Set 1878106090 is built for complete top-end rebuilds. Brand and product advantages include:

• Complete gasket coverage minimizes risk of secondary leaks after head replacement
• Engineered materials and dimensional precision suitable for diesel sealing pressures
• Direct application fit for ISUZU 6BG1 variants (1986–1992) allowing straightforward installation
• Kit consolidation reduces downtime (single purchase vs. sourcing multiple individual gaskets)

Using a dedicated full kit from a reputable supplier simplifies warranty handling and reduces variations in gasket quality that can occur with mixed-source repairs.

FAQ — Common questions about Engine Head Gasket Kit Full Set and ISUZU 6BG1

Q: Is the WTA Engine Head Gasket Kit 1878106090 a direct replacement for ISUZU 6BG1 engines?
A: Yes — this kit is specified for ISUZU 6BG1 trucks from 1986–1992 (F-Series FSR 500 FVR 12 JCS 420). Always verify engine model and serial numbers before purchase.

Q: Do I need new head bolts?
A: Check your service manual. Many diesel engines require new head bolts (torque-to-yield). If the kit includes bolts, use them. If not, consider replacing bolts to ensure proper clamping force.

Q: What torque values should I use for head bolts?
A: Use the exact torque and angle values from the ISUZU 6BG1 factory service manual. The procedure is typically multi-stage and may include angle-turns; this prevents warping and ensures correct clamping.

Q: How can I tell if the head or block needs machining?
A: Use a straight edge and feeler gauge to measure warpage. If readings exceed the service limit in the manual or if there are visible cracks, machining or replacement is required.

Q: How long after installation before I can perform a road test?
A: After initial start and confirming no leaks, a short light-load road test is appropriate. Re-check for leaks and re-torque accessible bolts if specified after thermal cycling.
